For Rigid Conduits
Non-armoured

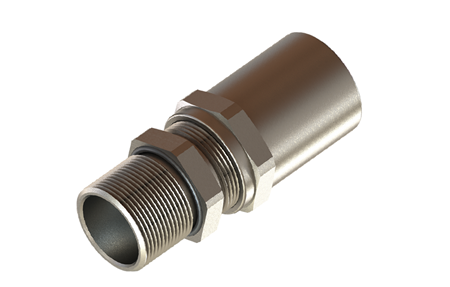

Straight fittings (Ex-e gas & dust), for rigid conduits, male thread, metal
E-CARINA for Ex-e
• For applications in explosive environments.
• For Group II & III (Gas & Dust) – Ex-e only.
• For rigid conduits with cable clamping.
• Can be used with intrinsically safe circuits.
• High quality strain relief and sealing, reliable performance for standard hazardous area applications.
• Up-to-date international approvals.
CERTIFICATES & CATALOGUES
| Info | Outer Thread Size (Male) | Inner Thread Size (Female) | Clamping Range Outer Sheath Ø min - max (mm) | Clamping Range Seal Type | Outer Thread Length Ex-e min. (mm) | ITL (mm) | SW Cap (mm) | SW Body (mm) | D (mm) | H (mm) | Stock Status |
|---|---|---|---|---|---|---|---|---|---|---|---|
 | M12x1,5 | NPT 1/4" | 4,0 - 8,0 | Triple | 9,0 | 16,0 | 24 | 22 | 26,5 | 49,5 | In Stock |
| M12x1,5 | NPT 3/8" | 4,0 - 8,0 | Triple | 9,0 | 16,0 | 24 | 22 | 26,5 | 49,5 | In Stock |
| M16x1,5 | NPT 1/4" | 4,0 - 8,0 | Triple | 9,0 | 16,0 | 24 | 22 | 26,5 | 49,5 | In Stock |
| M16x1,5 | NPT 3/8" | 4,0 - 12,0 | Triple | 9,0 | 16,0 | 24 | 22 | 26,5 | 49,5 | In Stock |
| M16x1,5 | NPT 1/2" | 4,0 - 12,0 | Triple | 9,0 | 16,0 | 24 | 22 | 26,5 | 49,5 | In Stock |
| M20x1,5 | NPT 3/8" | 4,0 - 12,0 | Triple | 9,0 | 16,0 | 24 | 22 | 26,5 | 46,0 | In Stock |
| M20x1,5 | NPT 1/2" | 4,0 - 12,0 | Triple | 9,0 | 16,0 | 24 | 22 | 26,5 | 46,0 | In Stock |
| M20x1,5 | NPT 1/2" | 10,0 - 16,0 | Triple | 9,0 | 16,0 | 30 | 28 | 33,0 | 49,0 | In Stock |
| M20x1,5 | NPT 3/4" | 10,0 - 16,0 | Triple | 9,0 | 16,0 | 30 | 28 | 33,0 | 49,0 | In Stock |
| M25x1,5 | NPT 1/2" | 10,0 - 16,0 | Triple | 9,0 | 16,0 | 30 | 28 | 33,0 | 49,5 | In Stock |
| M25x1,5 | NPT 3/4" | 10,0 - 18,0 | Triple | 9,0 | 16,0 | 30 | 28 | 33,0 | 49,5 | In Stock |
| M25x1,5 | NPT 3/4" | 14,0 - 20,0 | Triple | 9,0 | 16,0 | 35 | 35 | 39,0 | 54,0 | In Stock |
| M25x1,5 | NPT 1" | 14,0 - 20,0 | Triple | 9,0 | 20,0 | 35 | 35 | 39,0 | 57,0 | In Stock |
| M32x1,5 | NPT 3/4" | 14,0 - 20,0 | Triple | 9,0 | 16,0 | 35 | 35 | 39,0 | 52,0 | In Stock |
| M32x1,5 | NPT 1" | 14,0 - 24,0 | Triple | 9,0 | 20,0 | 35 | 35 | 39,0 | 56,0 | In Stock |
| M32x1,5 | NPT 1" | 22,0 - 26,0 | Triple | 9,0 | 20,0 | 45 | 45 | 50,0 | 67,5 | In Stock |
| M32x1,5 | NPT 1 1/4" | 22,0 - 28,0 | Triple | 9,0 | 20,0 | 50 | 45 | 55,5 | 65,5 | In Stock |
| M40x1,5 | NPT 1" | 22,0 - 26,0 | Triple | 9,0 | 20,0 | 45 | 45 | 50,0 | 67,5 | In Stock |
| M40x1,5 | NPT 1 1/4" | 22,0 - 32,0 | Triple | 9,0 | 20,0 | 50 | 45 | 55,0 | 65,5 | In Stock |
| M40x1,5 | NPT 1 1/4" | 26,0 - 34,0 | Triple | 9,0 | 20,0 | 50 | 50 | 56,0 | 68,0 | In Stock |
| M40x1,5 | NPT 1 1/2" | 26,0 - 34,0 | Triple | 9,0 | 20,0 | 50 | 50 | 56,0 | 69,0 | In Stock |
| M50x1,5 | NPT 1 1/4" | 26,0 - 34,0 | Triple | 9,0 | 20,0 | 50 | 55 | 61,0 | 68,0 | In Stock |
| M50x1,5 | NPT 1 1/2" | 26,0 - 35,0 | Triple | 9,0 | 20,0 | 55 | 55 | 61,0 | 69,0 | In Stock |
| M50x1,5 | NPT 1 1/2" | 35,0 - 41,0 | Triple | 9,0 | 20,0 | 64 | 64 | 70,0 | 66,5 | In Stock |
| M50x1,5 | NPT 2" | 35,0 - 44,0 | Triple | 9,0 | 20,0 | 68 | 64 | 75,0 | 69,5 | In Stock |
| M63x1,5 | NPT 1 1/2" | 35,0 - 41,0 | Triple | 9,0 | 20,0 | 64 | 68 | 75,0 | 69,0 | In Stock |
| M63x1,5 | NPT 2" | 35,0 - 45,0 | Triple | 9,0 | 20,0 | 68 | 68 | 75,0 | 69,0 | In Stock |
| M63x1,5 | NPT 2" | 46,0 - 52,0 | Triple | 9,0 | 20,0 | 80 | 75 | 89,0 | 72,0 | In Stock |
| M63x1,5 | NPT 2 1/2" | 46,0 - 56,0 | Triple | 9,0 | 21,0 | 80 | 75 | 89,0 | 76,0 | In Stock |
| M75x1,5 | NPT 2 1/2" | 46,0 - 62,0 | Triple | 9,0 | 21,0 | 80 | 80 | 89,0 | 73,0 | In Stock |
