SWA-AWA Cables
For Lead Sheathed

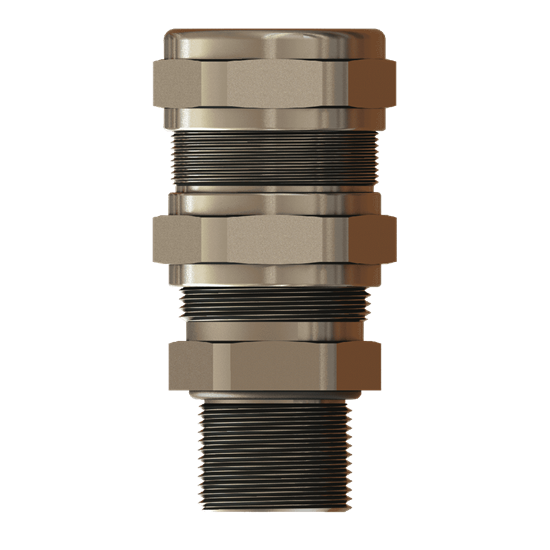

Cable glands (Ex-d/e gas & dust), double compression, for lead-sheathed SWA-AWA cables, metal
ORION LEAD SHEATHED
• For applications in explosive environments.
• For Group II & III (Gas & Dust) – Ex-d/e.
• Special design for lead-sheathed cables.
• Double clamping for outer and inner sheath.
• Can be used with intrinsically safe circuits.
• High quality strain relief and sealing, reliable performance for standard hazardous area applications.
• Up-to-date international approvals.
CERTIFICATES & CATALOGUES
| Info | Outer Thread Size (Male) | Clamping Range Inner Sheath Ø min-max (mm) | Clamping Range Outer Sheath Ø min - max (mm) | Armour Wire Ø min-max (mm) | TL (mm) | SW Cap (mm) | SW Upper Body (mm) | SW Lower Body (mm) | D (mm) | H (mm) | Stock Status |
|---|---|---|---|---|---|---|---|---|---|---|---|
 | M20x1,5 | 3,0 - 8,0 | 6,0 - 12,0 | 0,70 - 1,20 | 16,0 | 26 | 26 | 24 | 29,0 | 50,0 | In Stock |
| M20x1,5 | 6,0 - 11,5 | 8,5 - 16,0 | 0,70 - 1,25 | 16,0 | 29 | 29 | 25 | 31,5 | 51,5 | In Stock |
| M20x1,5 | 8,5 - 14,0 | 12,0 - 20,0 | 0,90 - 1,30 | 16,0 | 32 | 30 | 28 | 35,0 | 54,0 | In Stock |
| M25x1,5 | 3,0 - 8,0 | 6,0 - 12,0 | 0,70 - 1,20 | 18,0 | 26 | 26 | 29 | 31,5 | 50,0 | In Stock |
| M25x1,5 | 6,0 - 11,5 | 8,5 - 16,0 | 0,70 - 1,25 | 18,0 | 29 | 29 | 29 | 31,5 | 52,5 | In Stock |
| M25x1,5 | 8,5 - 15,0 | 12,0 - 21,0 | 0,70 - 1,20 | 18,0 | 34 | 34 | 32 | 37,0 | 56,5 | In Stock |
| M25x1,5 | 12,0 - 19,0 | 16,0 - 26,0 | 1,30 - 1,70 | 18,0 | 40 | 40 | 36 | 44,0 | 63,0 | In Stock |
| M32x1,5 | 6,0 - 11,5 | 8,5 - 16,0 | 0,70 - 1,25 | 18,0 | 29 | 29 | 36 | 39,8 | 52,5 | In Stock |
| M32x1,5 | 12,0 - 19,0 | 16,0 - 26,0 | 1,30 - 1,70 | 18,0 | 40 | 40 | 40 | 44,0 | 64,0 | In Stock |
| M32x1,5 | 15,0 - 25,0 | 20,0 - 33,0 | 1,20 - 1,80 | 18,0 | 52 | 52 | 48 | 57,0 | 81,0 | In Stock |
| M40x1,5 | 12,0 - 19,0 | 16,0 - 26,0 | 1,30 - 1,70 | 18,0 | 40 | 40 | 45 | 50,0 | 64,0 | In Stock |
| M40x1,5 | 15,0 - 25,0 | 20,0 - 33,0 | 1,20 - 1,80 | 18,0 | 52 | 52 | 48 | 57,0 | 81,0 | In Stock |
| M40x1,5 | 20,0 - 31,0 | 29,0 - 41,0 | 1,60 - 2,20 | 18,0 | 60 | 60 | 55 | 66,0 | 92,0 | In Stock |
| M50x1,5 | 15,0 - 25,0 | 20,0 - 33,0 | 1,20 - 1,80 | 18,0 | 52 | 52 | 54 | 60,0 | 81,0 | In Stock |
| M50x1,5 | 20,0 - 31,0 | 29,0 - 41,0 | 1,60 - 2,20 | 18,0 | 60 | 60 | 55 | 66,0 | 92,0 | In Stock |
| M50x1,5 | 22,0 - 34,0 | 33,0 - 48,0 | 2,00 - 2,80 | 18,0 | 75 | 70 | 60 | 83,0 | 100,0 | In Stock |
| M50x1,5 | 27,0 - 40,0 | 36,0 - 52,0 | 1,80 - 2,80 | 18,0 | 74 | 70 | 70 | 81,8 | 104,5 | In Stock |
| M63x1,5 | 22,0 - 35,0 | 33,0 - 48,0 | 2,00 - 2,80 | 20,0 | 75 | 70 | 68 | 83,0 | 100,0 | In Stock |
| M63x1,5 | 27,0 - 40,0 | 36,0 - 52,0 | 1,80 - 2,80 | 20,0 | 74 | 70 | 70 | 81,8 | 104,5 | In Stock |
| M63x1,5 | 35,0 - 44,0 | 43,0 - 57,0 | 1,80 - 2,80 | 20,0 | 80 | 80 | 75 | 89,5 | 109,5 | In Stock |
| M63x1,5 | 40,0 - 50,0 | 47,0 - 60,0 | 1,80 - 2,80 | 20,0 | 85 | 85 | 85 | 94,0 | 111,5 | In Stock |
| M63x1,5 | 45,0 - 56,0 | 54,0 - 70,0 | 1,30 - 2,50 | 20,0 | 100 | 95 | 90 | 110,5 | 128,5 | In Stock |
| M75x1,5 | 35,0 - 44,0 | 43,0 - 57,0 | 1,80 - 2,80 | 20,0 | 80 | 80 | 85 | 94,0 | 109,5 | In Stock |
| M75x1,5 | 40,0 - 50,0 | 47,0 - 60,0 | 1,80 - 2,80 | 20,0 | 85 | 85 | 85 | 94,0 | 111,5 | In Stock |
| M75x1,5 | 45,0 - 58,0 | 54,0 - 70,0 | 1,00 - 2,30 | 20,0 | 100 | 95 | 90 | 110,5 | 127,5 | In Stock |
| M90x1,5 | 40,0 - 50,0 | 47,0 - 60,0 | 1,80 - 2,80 | 20,0 | 85 | 85 | 100 | 110,5 | 111,5 | In Stock |
| M90x1,5 | 45,0 - 58,0 | 54,0 - 70,0 | 1,00 - 2,30 | 20,0 | 100 | 95 | 95 | 110,5 | 127,5 | In Stock |
| M90x1,5 | 60,0-70,0 | 63,0 - 80,0 | 1,00 - 3,50 | 20,0 | 115 | 115 | 110 | 127,0 | 158,0 | In Stock |
| NPT 1/2" | 3,0 - 8,0 | 6,0 - 12,0 | 0,70 - 1,20 | 21,0 | 26 | 26 | 24 | 29,0 | 49,5 | In Stock |
| NPT 1/2" | 6,0 - 11,5 | 8,5 - 16,0 | 0,70 - 1,25 | 21,0 | 29 | 29 | 25 | 31,5 | 51,0 | In Stock |
